Fast response & accurate analyzers for dynamic blending

Since its founding in 1989, ECO PHYSICS has been continuously developing state-of-the-art NO/NO2/ NOXand NH3analyzers. From low ppt level analysers for atmospheric research to ambient air monitoring, continuous emissions monitoring, combustion research and testing exhaust gases containing up to 10,000ppm NOx, ECO PHYSICS has a solution for almost every possible NO and NOx application.

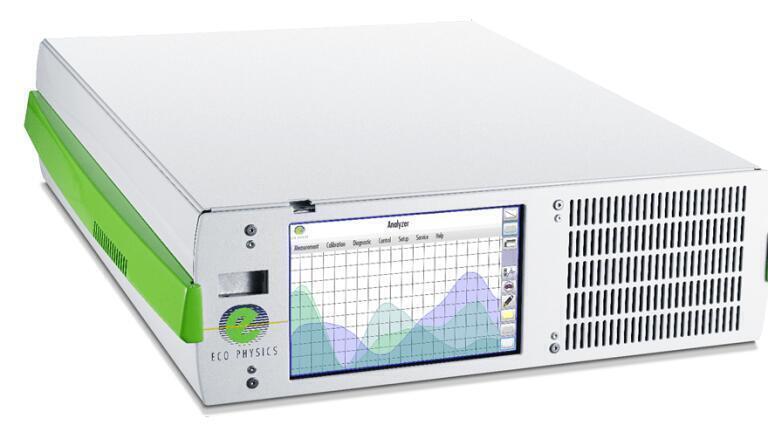

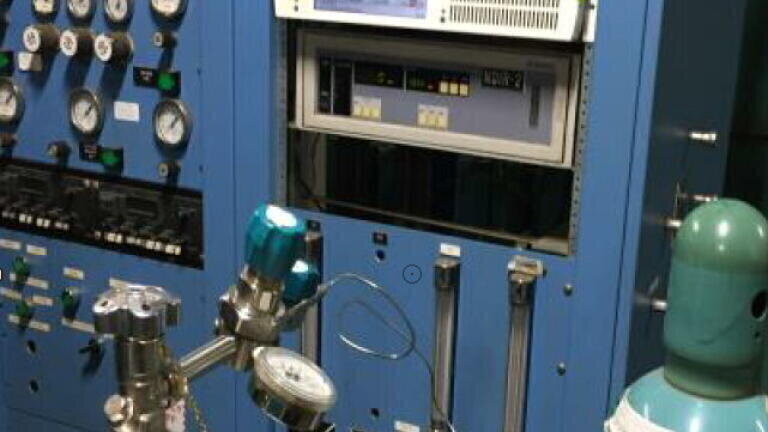

ECO PHYSICS dual channel dual PMT analyzers are unique in that there are essentially two analyzers inside one box. The dual reaction chambers and dual PMT detectors allow for simultaneous measurement of NO and NOx, and in combination with the high sensitivity PMT and firmware it makes the ECO PHYSICS NOx analyzers extremely fast response and ideal for applications requiring extremely fast response, e.g. measurements done from a car or aircraft moving at high speeds, liquid NO measurements, roadside Monitoring, gas blending applications etc. Due to the fast response, accuracy and fast stabilisation, gas manufacturers use ECO PHYSICS’ dual channel dual PMT NOx analyzers for quality assurance and gas blending applications. In a gas blending station dozens of cylinders of certified, primary, NIST traceable and EPA protocol standards are filled at a given time. A side stream of the blend is redirected to the ECO PHSYICS NOx analyzer to monitor the concentration stability of gas as the cylinders are filled.
