• Hand-held Transmitter Now Also Measures CO2

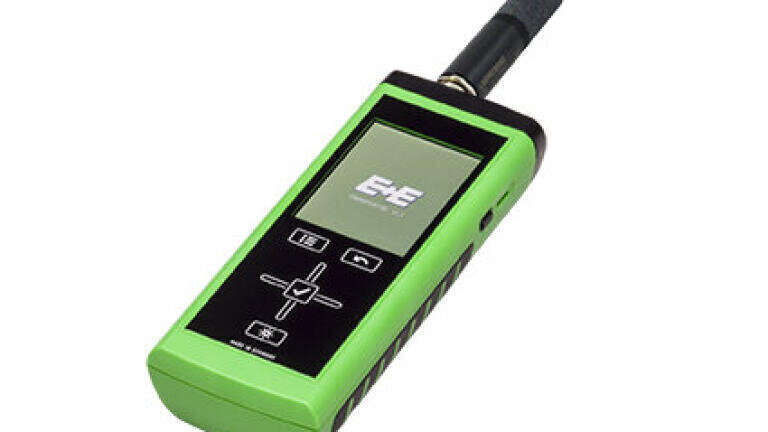

    Robust hand-held transmitter Omniport 30 with CO2 probe

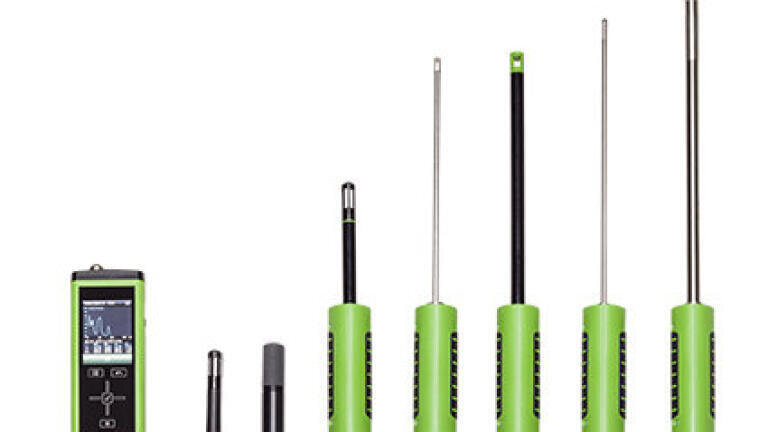

  • A wide range of interchangeable sensing probes make the Omniport 30 a universally applicable measuring instrument

Portable & field testing

Hand-held Transmitter Now Also Measures CO2

Now available for the Omniport 30 hand-held transmitter from E+E Elektronik (Austria) is a CO2 probe with a measurement range of 0…2000 / 5000 / 10,000ppm. This means that the device can be used for ambient air monitoring or for CO2 leak localization. Other E+E probes for humidity, temperature and air velocity and the integrated air pressure sensor make the Omniport 30 a universal transmitter for a variety of applications. A total of up to 23 different measurements can be recorded and stored.

The new CO2 probe is based on the NDIR dual wave length procedure and was developed specifically for demanding applications. Auto calibration and temperature compensation ensure long-term stability and high precision measurement results. The CO2 probe can also be calibrated directly on-site via the hand-held transmitter.

The Omniport 30 offers continuous and single-point data logging with time stamp. Up to three measurements can be displayed simultaneously on the large, easy to read TFT display. The data can also be displayed in the form of graphs. The intuitive menu guidance and touchscreen navigation make operating the hand-held transmitter easy and user friendly.

The internal memory of the Omniport 30 provides space for up to 2 million measurement values that can be transferred to a PC via USB interface. Complimentary data management software is available to carry out further analysis and archiving. Software updates can also be carried out via the USB interface.

A practical transport case is available for safe storage of the hand-held transmitter, including sensing probes and accessories.
