IR Combustible Gas Sensor Module Now with HART Interface

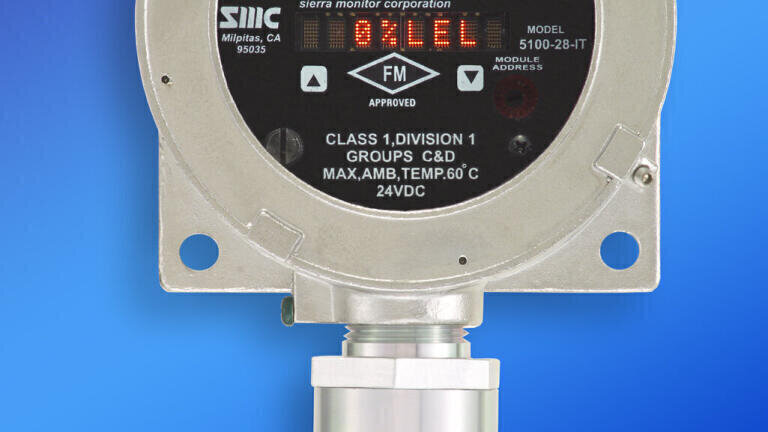

Sierra Monitor Corporation (USA) proudly announces that the Model 5100-28-IT infrared Combustible Gas Sensor Module, now includes HART interface. The 5100-28-IT is truly network enabled, meeting user’s and integrator’s needs to communication with any plant-wide control and monitoring system.

HART (Highway Addressable Remote Transducer) is a global bi-directional communication protocol standard for sending and receiving digital information across analog wires between smart field devices and host control or monitoring systems. The host can be any software application from a technician’s hand-held device or laptop to a plant’s process control, Asset management, safety or other system using any control platform. The HART protocol used on the Sierra Monitor IR Combustibles Gas Sensor Module has been developed to fully comply with the HART specifications outlined by the HART Communication Foundation.

The 5100-28-IT sensor module now provides interface via HART or 4-20 mA, Modbus RS-485 or Sierra Monitor’s proprietary Sentry bus. The 5100-28-IT is a standalone module loaded with the features required to provide the due diligence expected in hazardous areas including; long term calibration interval for reduced maintenance costs, FM approved for performance and area safety requirements including Group B and SIL Certified.

The sensor module provides a rapid response time with high accuracy, and specifications unmatched in the industry. Integral scrolling LED is provided with magnet operated menu for display of gas status and easy, non-intrusive calibration. The isolated 4-20mA, Modbus RTU, HART and Sentry digital bus output meet specific application communications requirements. In addition, integral alarm relays may be supplemented by higher amperage control relays in the same enclosure.
