Simplified Liquid Flow Microsensors
Sep 12 2008

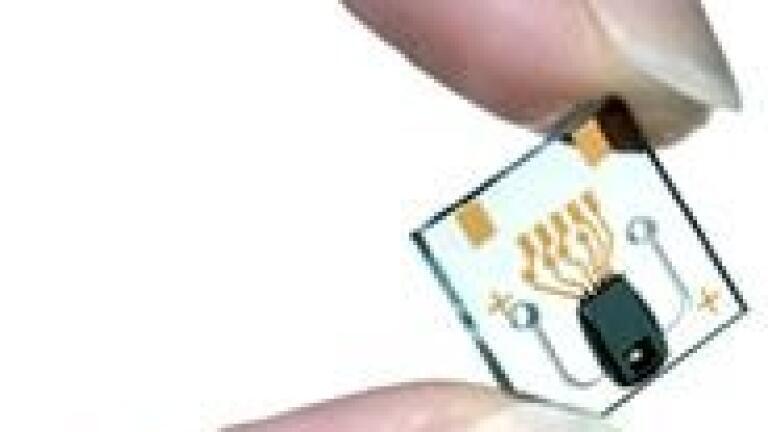

Innovative packaging enables Sensirion`s highly sensitive thermal flow sensor microchips to measure non-invasively through the wall of a flow channel inside a microfluidic substrate (US Pat. 6813944). This design provides unique sensitivity for liquid flow measurement and bubble detection in the microliter range. The sensors are especially suitable for monitoring flow rates and improving system performance in high-volume biomedical applications and micro fuel cells.
Non-invasive flow sensing is possible thanks to the high sensitivity achieved with CMOSens® technology. A small digital CMOSens® microchip (2.2 x 3.5 mm) is bonded to the microfluidic channel substrate. Beside the sensor element it houses the complete digital intelligence as well as the memory necessary for signal linearization, temperature compensation and self-test algorithms. The chip provides a fully digital I²C interface and can operate over a supply voltage of 2.8 to 3.3 V.
Electrical contact is made via metallization on top of the microfluidic substrate. Fluidic ports on bottom facilitate easy integration of discrete sensors for manifold designs if necessary. The sensor boasts a short flow sensing response time of around 30 ms, and sensor resolutions down to 0.5 nl/min are feasible.
This significant simplification of liquid flow sensing technology enables the realization of extremely small and efficient OEM
sensor solutions. The digital microsensor chip provides a fully calibrated digital output, eliminating the need for additional
signal conditioning. Customized OEM solutions based on this technology will be developed for high-volume applications.
