Promag L 400 Flowmeter for Water and Wastewater Applications Introduced
Aug 13 2012

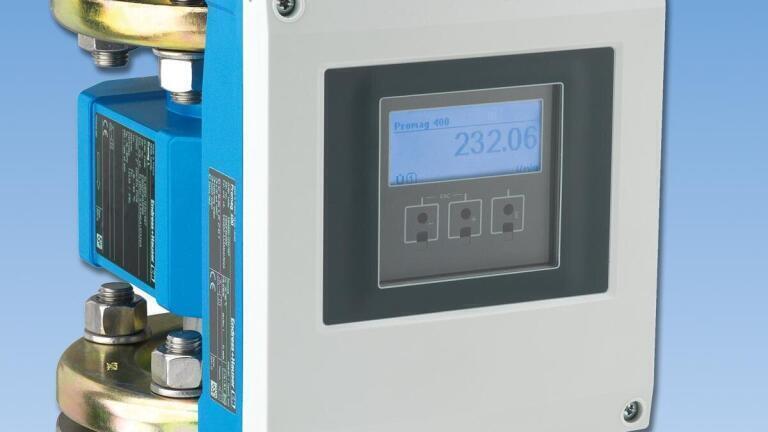

Endress+Hauser (USA) introduces the Proline Promag L 400 electromagnetic flowmeter for water and wastewater applications. It has an Ethernet port and built-in webserver for easy data access and configuration via any web browser. The industry optimised L sensor has drinking water approvals and corrosion protection that allows it to be installed underwater, underground and in saline environments. Sensors are available in nominal diameters from 2 to 90 in.
With the integrated webserver, the Promag L 400 can be accessed via a standard web browser. This allows engineers and maintenance technicians to configure all device functions without any special software; to upload and download configuration date for backup or copying to identical meters; and to access device, diagnostic and process information.
The Promag L 400 also has KTW/W270, ACS, NSF 61 and WRAS BS 6920 drinking water approvals, as well as custody transfer approvals to MI-001 and OIML R49 water meter standards. Accuracy is 0.2% of range. Each device is tested on accredited and traceable calibration rigs.
Seamless integration into existing control systems is assured via HART, Profibus DP and EtherNet/IP (in preparation).
An on-board HistoROM system provides data storage of all sensor, transmitter and totaliser data, with no data loss if power is removed. The HistoROM system provides a built-in data logger, has an event logbook and parameter backup, and can be restored using .xml files through the webserver.
Data can be accessed via the webserver or the local graphics display. The graphics display has guided menus, “Make it Run” wizards, 16 languages, help displays, and built-in simulation software.
For more information about the Promag L 400, please go to the product page at:
www.us.endress.com/promag-400-800
Endress+Hauser magnetic flowmeters are supported by a worldwide sales and service network with the knowledge gained from over 1.5 million magnetic flowmeter sensors installed since 1977.
