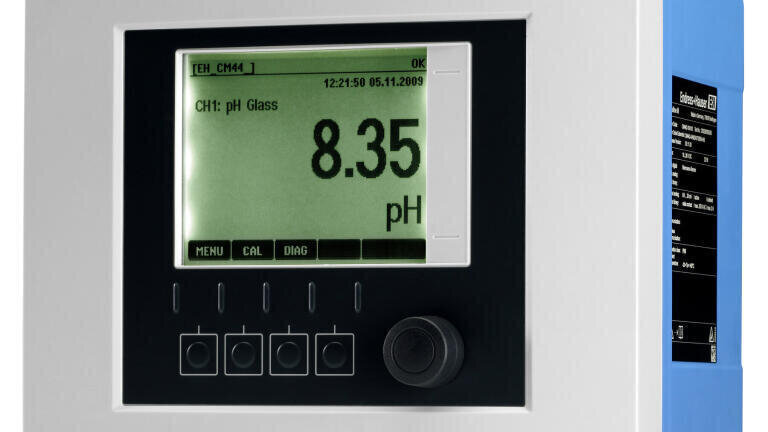

Liquiline CM44 Multichannel Transmitter Introduced for Water and Wastewater Industries

Liquiline CM44 Series transmitter takes inputs from up to eight analytical sensors, transmits them to a control system via 4-20mA analogue outputs, HART, Profibus or Modbus networks, and provides remote access via an integrated web server.

Endress+Hauser (Germany) introduces the Liquiline CM444 and CM448 multichannel transmitters for monitoring and controlling processes in water & wastewater, chemical, power and other industries.

Liquiline CM444 and CM448 accept inputs from up to eight Endress+Hauser Memosens digital sensors including nitrate, spectral absorption coefficient (SAC), pH, ORP, conductivity, dissolved oxygen, turbidity, free-chlorine and ion selective electrode sensors. Mix and match as needed – the device recognises any combination of Memosens sensors and starts operating immediately. Memosens technology means all sensors can be precalibrated in the laboratory. When connected to the Liquiline series of transmitters - sensors are recognised automatically. This makes the exchange of sensors fast and maximizes the uptime of the measuring point.

The Liquiline CM444 and CM448 can be field-upgraded at any time to accept additional inputs simply by plugging in additional modules. Optional current inputs are available for processing signals from other process devices such as flow, level or pressure sensors.

Outputs from the CM444 and CM448 transmitters include up to eight 4-20mA current outputs with HART; as well as Ethernet, Profibus, and Modbus TCP or 485 networks. An integrated web server provides remote access via any web browser.

In addition to actual process values provided by the sensors or analog inputs, mathematical functions can be used to calculate a maximum of six "virtual" process values. The following mathematical functions are possible: pH calculation based on two conductivity values, often used in boiler feed water and similar applications, Difference between two measured values from different sources, such as for membrane monitoring, Differential conductivity to monitor the efficiency of ion exchangers, Degassed conductivity for process control in power plants, Redundancy for monitoring two or three measuring sensors and rH calculation based on the measured values of pH and ORP sensors.

The virtual process values can be: Output via a current output or one of the digital network, Used as a regulating control variable, Assigned as a measured variable to a limit contactor activated by one of the unit’s relay outputs, Used as a measured variable to trigger cleaning and Displayed in user-defined menus.

The Liquiline CM444 and CM448 transmitters have a back-lit graphic display that alerts users to errors and displays load curves. It also has drop-down menus for monitoring values, and displays outputs from the built-in data logger. The data logger can maintain up to eight separate data logbooks, with 150,000 entries per logbook. The data logger has an adjustable scan time of one second to six hours, and a logbook that keeps track of up to 75 calibrations.

Device configuration, diagnostics and maintenance asset functions can be accomplished with Endress+Hauser’s FieldCare software. FieldCare, based on FDT/DTM technology, can connect to the CM444 or CM448 via a service interface or HART.

For more information on the CM444 and CM448, please go to the product page at: www.us.endress.com/liquiline.
