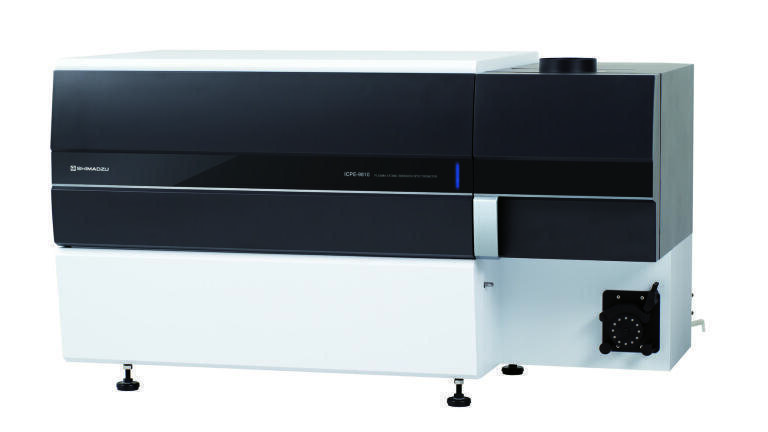

ICPE-9800 series - Elemental analysis across a wide concentration range

Analytical service- and quality control laboratories will benefit from the ICPE-9800 series of simultaneous ICP optical emission spectrometers of Shimadzu. The systems combine higher throughput with reduced operating costs and feature easy-to-use software, a sophisticated design and the Eco mode which brings saves of 50 percent or more in power and argon gas consumption, independent of sample matrix, whether aqueous or organic samples are aspirated. The vacuum optical system does not require any purge gas, thereby eliminating gas consumption when plasma is switched off.

ICP optical emission spectrometers are used in a variety of fields involving environmental samples, drinking water, foods, pharmaceuticals and petrochemical materials. All-wavelengths acquisition allows users to add elements and wavelengths post-analysis without time-consuming reanalysis of samples.

The ICPE-9800 series consists of the ICPE-9810 which provides axial view plasma observation in a direction coaxial to the plasma, and the ICPE-9820 which in addition to axial view provides radial view plasma observation in the perpendicular direction. This dual view capability allows measurements to switch automatically between high-sensitivity axial view and high-accuracy radial view, enabling analysis of elements across a broad concentration range with a single method.

For more information please our website.
