Sensitive Triboelectric Dust Monitor
May 04 2017
Standard triboelectric technology is based on the DC signal, which is caused by particles making contact with the sensor to transfer charges. Compared to DC based measurements, the AC based technology is much more sensitive and mitigates the influence of sensor contamination which is huge benefit for industrial applications. By using AC based Inductive Electricity Technology it is possible to reach dust concentration measurement thresholds as low as 0.01 mg/m3.

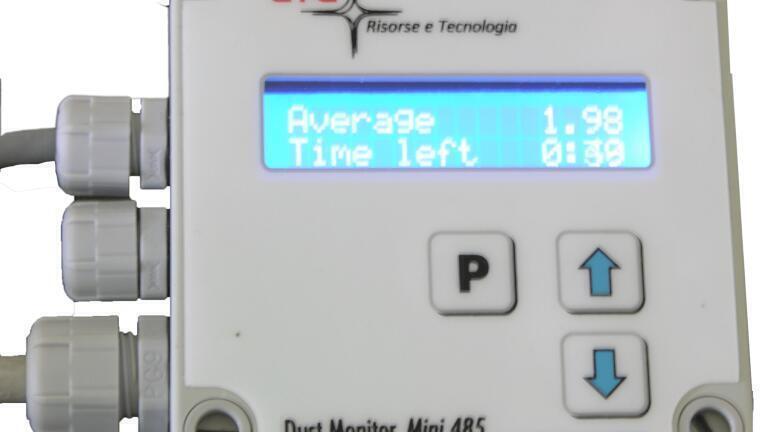

The Basic Triboelectric ETG Tribo Dust Mini 485 it’s composed by :
A probe with electrode. The communication between the probe and the Main board it’s performed by a couple twisted wires by a digital communication. The Electrical power to the probe it’s supplied by the Main board with the twisted wires, Welded base Stainless Steel, Screeen wires cable to be connected from probe to Main board, Main board. The microprocessor by the digital display to manage to several functions as : Warm up, Last software release, Test Probe , Programmable Start Delay, Istantaneous value , Average value, Remaining time to the last average , Minimum & Maximum value, Threshold alarm on Istantaneous or average value, Analogic full scale value, Internal diagnostic, Calibration procedure.
Main Applications:
Bag Filter Management - Wood Industry, Cement Manufacturing, Dumo Metallurgical, Dumo Sulfur Plant, Dust Control System - Smelter Industry, Emission Monitoring - Bioethanol Industry, Emission Monitoring - Chemical Industry, Emission Monitoring - Power Industry, ESPY Coal Fired Power Plant, Process Monitoring - Chemical Industry, Process Monitoring - ESPY Steel Industry, Process Monitoring - Pharmaceutical Industry, RF Network - Paper Machinery, Steel Manufacturing Process
