Air monitoring

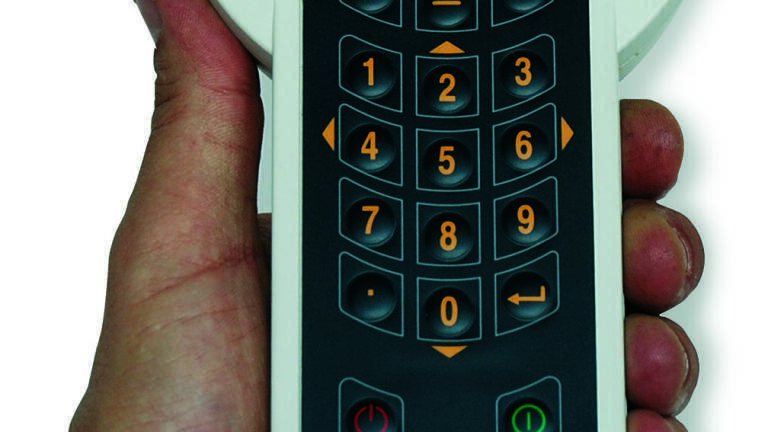

TCR Tecora presents its new multifunction calibrator Flowcal Air.
Feb 16 2011
Flowcal Air is more than a simple flow calibrator: it allows to perform all necessary controls to verify the calibration of some parameters, which are normally measured by sampler, like flowrate, pressure and temperature. This characteristic makes Flowcal Air unique to test the accuracy of an instrument and to follow a quality system procedure. Flowcal Air generates a calibration report, containing the following data: cell in use, calibration expiration date, ambient conditions during verification test, deviation, etc. To download the report, simply insert and copy file onto the USB key supplied with the instrument.
Sensor and measurement calibrations have been performed with high accuracy and care. Each sensor is calibrated through an accurate procedure and is traceable to standards.

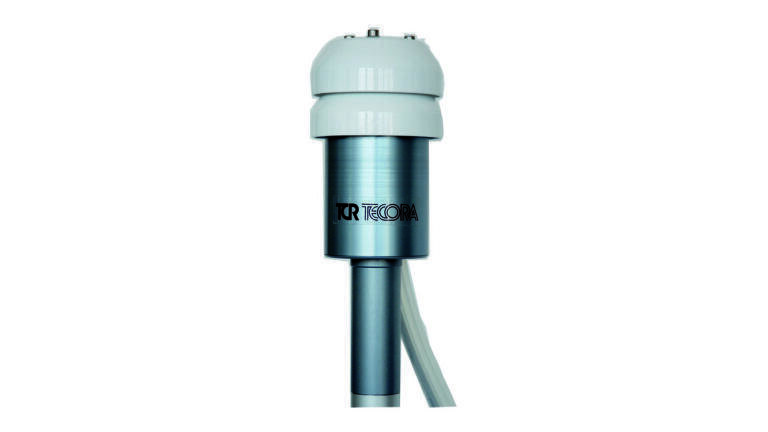

Flowcell Air – Flowcal Air can be used with Flowcell Air. These cells are calibrated individually: each one saves on its microchip all the information for the calibration traceability. Two cells are available: Hi Flow cell, with range 150 – 600 l/min and Mid Flow cell, with range 10 – 60 l/min.
Flowcal Air HiDP – It is possible to use Flowcal Air with calibrated measurement orifices, like US EPA calibrators for high flows. Introducing in Flowcal Air the manufacturer’s calibration constants, it is possible to transform the old orifice into an electronic range measurement. The range will be shown at standard and actual conditions, so it won’t be necessary anymore using the U-tubes and calculate the measurement flow each time.
Other features of Flowcal Air: power supply with alkaline or rechargeable batteries replaceable by customer; battery autonomy up to 90 hours; internal memory capability up to 256 report.
For further info please contact: TCR Tecora Srl – Ph. +39 02.4505501 Fax +39 02.48601811 tcrtec@tecora.it
