New Wireless Sensors for Humidity, Temperature and CO2

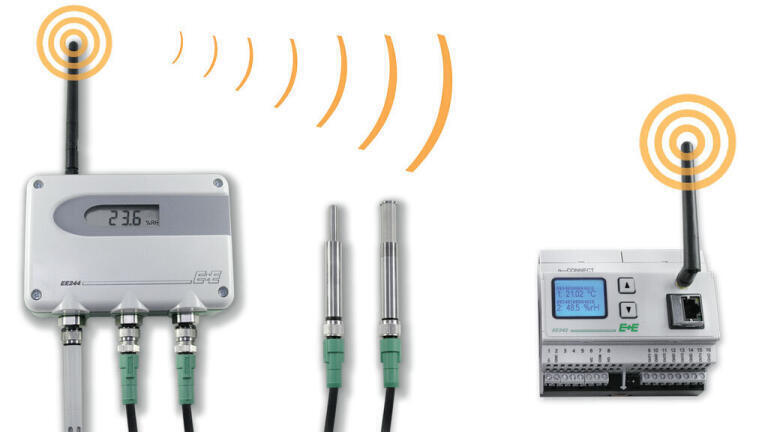

EE240 wireless sensors fromE+E Elektronikare the ideal solution for high quality, wireless measurement of humidity, temperature or CO2. With the introduction of state-of-the-art wireless data transmission, E+E Elektronik, the sensor specialist, is expanding its expertise into wireless sensor systems.

Up to three intelligent probes can be connected to each transmitter. Each probe operates independently and can be hot swapped. Remote probes allow the sensing head to be placed at a distance of up to 10m away from the transmitter. These features make the E+E wireless sensors especially suited for industrial applications that require sensors to be routinely recalibrated without affecting network operation. The measured values can be read directly off the display on the transmitter or read remotely using your web browser from any PC in the company network.

The base station features a digital Ethernet interface for effective connection to the network and data analysis. The integrated web server allows you to easily and individually configure the wireless sensor network from any PC without installing any software. The base station comes with four analog outputs for connection to your system controller.

A mobile measuring system with up to 500 transmitter stations can be built without having to install any wiring. In addition to this high degree of flexibility, coded bidirectional communication ensures completely secure data transmission.

The E+E wireless sensors conform to protection class IP65, making them suitable for use under demanding operating conditions as well as in outdoor applications.

Wireless routers are available to expand the network and range or to bypass obstacles.

Download data sheet wireless sensor.
