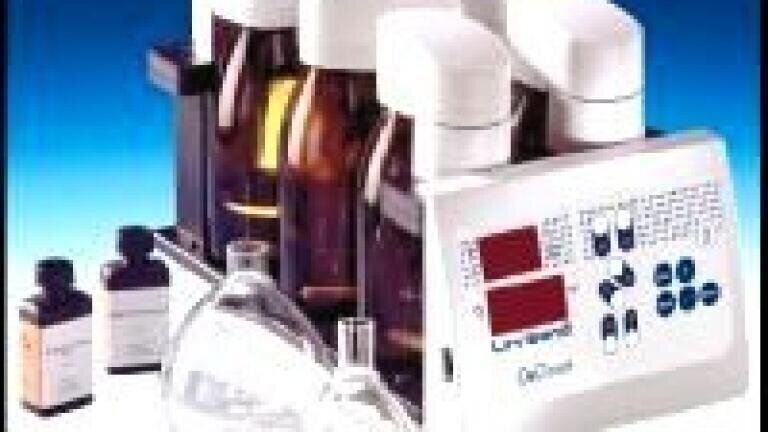

Lovibond® Bod-oxidirect Bod Measurement with Direct Sample Selection and Interface

The Lovibond® BOD-OxiDirect sensor system for permits exact and convenient measurement of the Biochemical Oxygen Demand (BOD) based on the respirometric principle. All results are shown in a big display directly in mg/l BOD without the need for time-consuming conversion using factors. In addi-tion, the measuring period can be user-selected between 1 and 28 days.
The unit measures BOD levels via the pressure drop in the closed system during a defined period of time. Following measurement, the results are stored and can be called up to the display at any time. The inductive stirrer system not only mixes the sample but also ensures optimum gas exchange be-tween sample and gas space in the sample flask.
Alongside the BOD unit to determine BOD levels, a BOD system contains sample flasks, a non-wearing inductive stirrer system, overflow measuring flask to measure the sample volume, nitrification inhibitor and potassium hydroxide as an absorbent.
Main advantages: Direct display of BOD values in mg/l, direct sample selection, user-friendly handling, user-selectable measuring period, result memory for up to 28 days (BOD5, BOD7, OECD...), measuring ranges from 0-40 mg/l to 0-4000 mg/l BOD, accurate measurements, autostart function following temperature equalisation of the samples, environment-friendly as mercury-free, automatic stirrer rod centering by the
inductive stirrer system and interface RS232.
