Portable Ultrasonic Flowmeter is Packed with Functions

An accurate, powerful, yet compact and simple-to-operate ultrasonic
portable flowmeter is the latest product to be introduced by flowmeter
specialists Floline (UK). The key design features of the Minisonic 801
flowmeter have been developed and included as a result of the extensive
practical, in-the-field flow control experience gained by Flowline, across a wide range of industry applications.
The versatile Minisonic 801 can be used on pipe diameters ranging
from 10mm up to 10 metres and is effective on any liquid, including those

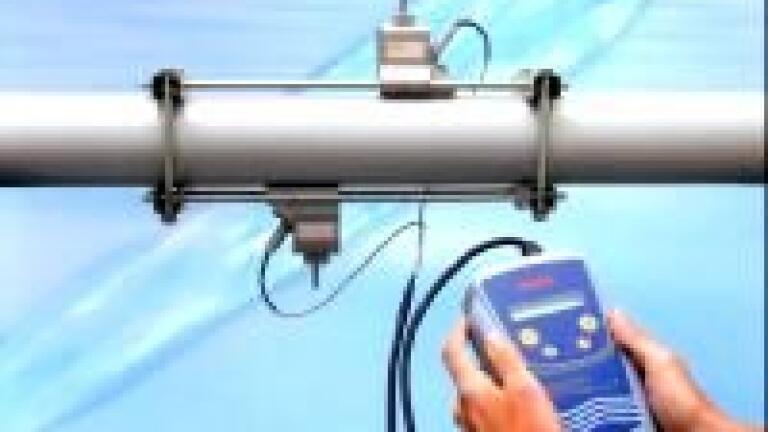

which are non-conduc+tive. The unit’s non-invasive, external probes are
simply clamped on to the pipe to facilitate quick installation and
immediate measurement. Set-up and operation can be performed either
by keypad or external software. Other features and benefits include all new digital signal processing functions which use multiple processors resulting in faster response times. Also, a choice of configurations from previously stored data from other sites, a battery life indicator and an integral data logger which provides over 6 months capacity at
2 minute intervals.
The control unit enclosure is robust and watertight (to IP67) and despite it’s durable construction and range of useful functions, weighs less than 1 kg. Probes are available for applications with pipe temperatures ranging from -100º C to +200ºC while high technology probes can be supplied for specialist applications.
The Minisonic 801 provides a measuring accuracy of up to ± 1.0% of reading and is suitable for a wide range of control applications. For example, monitoring flows in all water and waste applications, pump testing, various oil products either refined or crude, petrochemical and food industries, process metering and control or wherever portable, highly accurate and reliable flow metering is an important requirement.
