Advanced Multifunction Gas Detection System

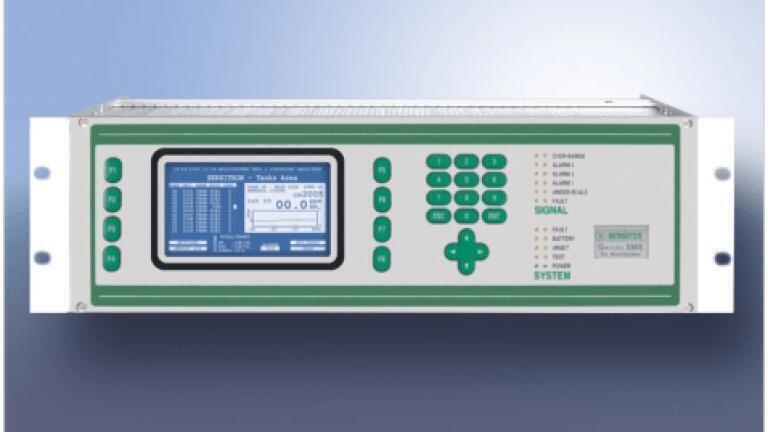

The GALILEO SMS (SIL Multisystem), from Sensitron (Italy), is an advanced multifunction gas detection control panel designed to comply with the SIL (Safety Integrity Level) requirements, according to the European Standard EN 50402 and IEC 61508 on Functional Safety. The functional safety is aimed at supervising and managing the behaviour of an overall system in case of failures.

To assure a full redundancy, the control unit’s main board is designed around 2 powerful microprocessors that communicate to each other the monitored data, ensuring the complete availability of all main board functions even in the case of a failure in one microprocessor. A broad range of self-testing facilities are implemented to detect and localise possible faults.

The redundancy offered by every module being part of the system, added to the possibility to communicate with remote input/output modules via a redundant closed BUS, makes this system comply with the Functional Safety requirements up to SIL3.

The GALILEO SMS consists of a control unit, used for monitoring and controlling, connected to an optional number of Analogue Input Modules (AIM), LOOP modules and RELAY modules.

The system will be connected in two digital RS485 (EIA-485) type closed loops capable of accommodating a maximum of 256 gas detectors connected as addressable gas detectors type SMART3G or SMART3 "S" connected via 32 input loop modules or analogue 4-20mA detectors connected through 8-input AIM (Analogue Inputs Modules), and a maximum of 520 relay outputs connected as 512 programmable relays on the Relay Outputs modules (8-16 relays module, basic and extended respectively).
