High Performance Gas Detection Controller with Logic Control Launched

Critical Environment Technologies Canada Inc. (CETCI) is pleased to announce the release of their FCS Flexible Control System. The FCS replaces the PDC, offering dramatic technological and functional improvements over its predecessor.

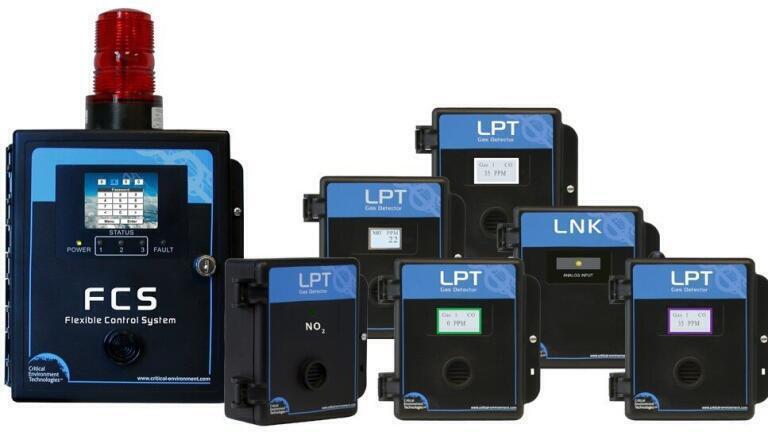

The FCS Flexible Control System is a sophisticated, high performance Controller that offers up to 128 gas channel configurations for monitoring toxic, combustible and refrigerant gases with versatile control functionality for non-hazardous, non-explosion rated, commercial and light industrial applications. The FCS is designed to accept inputs from digital and analogue transmitters and/or Peripheral Devices (in various combinations), using Modbus® RS-485 or 4-20 mA analogue input. In addition, the FCS is available with Modbus® RS-485 output or BACnet® MS/TP output for communicating with a Building Automation System (BAS).

Standard features include, a full colour, LCD touch screen with LED indicators for Power, Status and Fault, a door mounted audible alarm, an extensive menu structure with password protection, a USB port for firmware upgrades and data downloads, four internal 5-amp, dry contact relays, two configurable switch inputs and two strobe/horn output drives. The built-in data logging capabilities have a large capacity memory for saving all channel readings, configuration changes and transition data. The FCS has a maximum of 32 priorities which can be configured to define the relationships between the channels and the relays, allowing up to. Up to three conditions can be assigned to each relay. Channels can be assigned to report their Low, Medium, High and/or Fault statuses which in turn can be configured to trigger one re more relays to act on one or more of those statuses and channels. The logic control and flexibility of the priority levels is immense, allowing numerous monitoring and alarming configurations.

Optional, value added features include, internal analogue inputs (AI) and/or analogue outputs (AO), a top mounted strobe and a locking door. The FCS, like our new suite of products, uses our signature black enclosure that is IP54 rated when the optional water tight buzzer is installed at time of order.

Depending on the type and size of the application, the FCS may require additional devices to create the complete system. For networks that extend over a large area there is the potential for data noise and a reduction in the signal. The LNK-XT Network Extender is a signal booster that extends the range of the Modbus communications. An LNK-XT is recommended every 610m (2000ft) and up to 6 of these devices can be used on one FCS network. For very large system application and/or very long wire runs, the Remote Power Supply is available to boost the voltage and provide a renewed amount of power to compensate for voltage drops. The RPS-24VDC converts 90-240 VAC power to 24 VDC power. If more than the four internal relays are needed, two remote devices are available - the RLY-4 which offers four contacts and the RLY-8 that offers eight. All relays are rated at 5 amps. A maximum of 56 relays can be accommodated by the FCS. In the event that the optional internal analog inputs and/or analogue outputs are insufficient, there two peripheral devices, the LNK-AI and the LNK-AO available. The LNK-AI offers 4 analogue inputs and the LNK-AO offers 4 analogue outputs. Depending on the internal AI and AO configurations, up to a maximum of 14 LNK-AO and 14 LNK-AI devices can be connected to the FCS.

The FCS is ideal for use in large, enclosed parking facilities, indoor recreation facilities, food processing plants, refrigeration plants, chemical storage rooms, manufacturing plants and many more.
