RASI 800 Portable Combustion and Emissions Analyser receives MCERTS approval

EiUK  a leader supplier of portable emissions and combustion analysers are pleased to announce that the RASI 800 has now received MCERTS approval for 'MCERTS Performance standards for portable emissions Monitoring systems'.

The RASI 800 MCERTS measures O2, CO, NO, NO2, SO2 and CO2 ( NDIR) and include pressure, differential pressure, temperature and gas velocity as standard.

It is suitable for use in any combustion processes fired with gas, biogas, landfill gas, oil, diesel, kerosene and solid fuels including coal, wood pellets and biomass

It is particularly suggested for emission reporting and tuning of gas engines, gas turbines, industrial boilers, process heaters and generally for stack emission reporting in CHP’s and small to medium combustion processes.

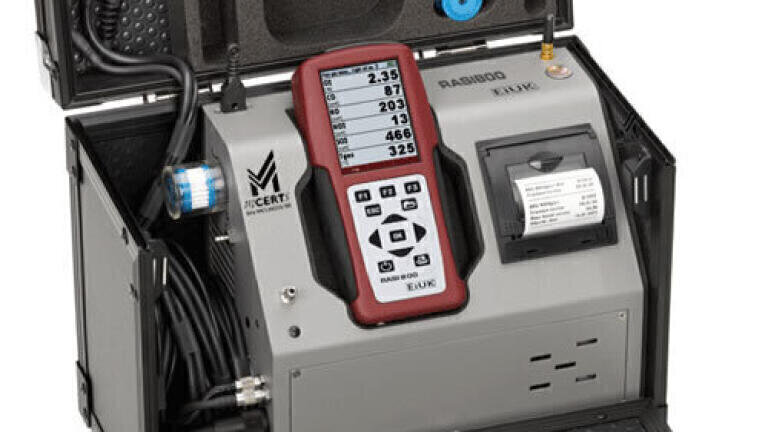

The  RASI  800  MCERTS features a sophisticated gas sample conditioning system that includes a sampling line with heated head, an electronic Peltier gas cooler, and a peristaltic pump for automatic moisture removal which minimise the sample gas moisture contact.

In  addition to support long-term measurement cycles, a 'fresh air inlet/set to auto zero' user programmable function is supplied as standard. The unit can also operate in wake and sleep mode allowing for semi continuous unattended operations with automatic data logging on SD card of the measurement values. Data are exported in CSV file.

The unit operates on Li-ION rechargeable batteries or can be powered using mains power. The base unit is also equipped with a built-in printer.

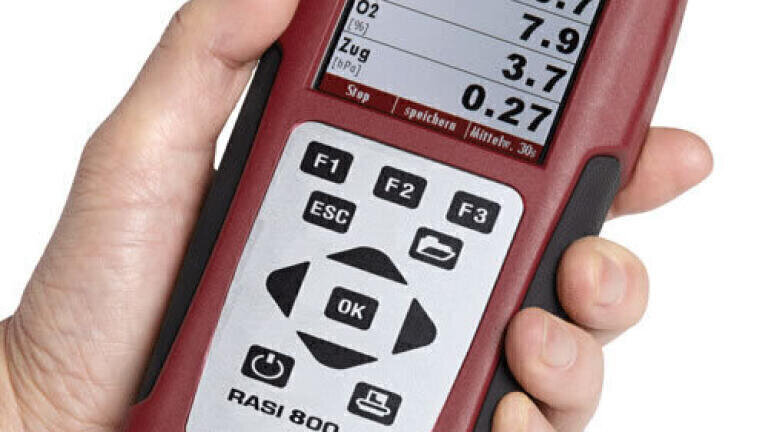

The wireless hand held control unit (RCU) remotely controls and operates all the functions of the analyser and displays the measured value. Data can be saved on an SD card and transferred to a PC directly or via USB port. The communication between the RCU and the analyser base is established via Bluetooth and it is ensured over long distances. The Remote operations of the analyser is particular useful when the gas sampling points are located away from control panels.

The RCU advanced menu with offers many features. The application task menu simplifies the operation of the analyser and make it extremely easy to use even for the first time users. It eliminate the risk of reporting wrong data due to non correct settings. Simply turn on the analyser and select your application and the analysers is ready to go.

 The RCU also provides the operator with various information and automatic calculations, such as O2 referencing and emissions conversions on its 3.5” TFT graphical colour display. The RASI 800 has a number of diagnosis features and alarms which are trigged in case of mal functioning such us low flow, or high condensation level. The alarm are in clear text and easy to interpertarte. The RCU is powered by Li-ION rechargeable batteries which are charged via induction from the main unit.

For additional information please click here or contact us on 01327 871044 or via email.
