Touchscreen Data Logger for Universal Use

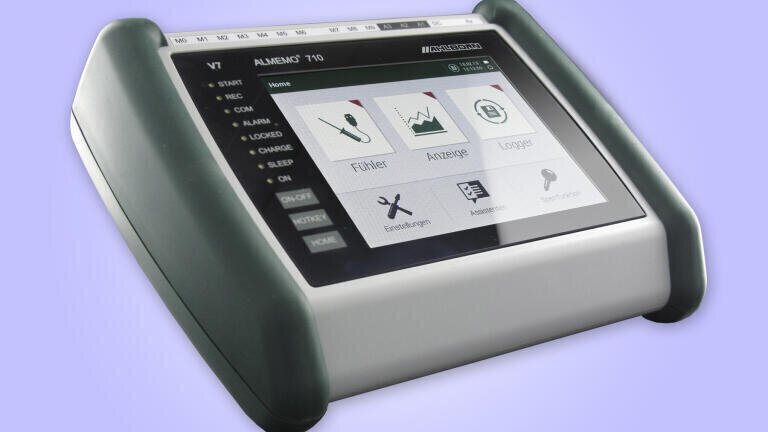

The ALMEMO 710 from Ahlborn (Germany) is a real newcomer in application-independent instrumentation. The design is both contemporary and compelling. Operation is both intuitive and easy to use via icons on a brightly lit, colourful 5.7” touch screen. For more complex applications, there is both a software wizard and online help via pop up windows in a clear presentation. Measurement, top middle, and limt values can be displayed in lists, bar and line graphs. For the professional user there is an auto-configurable user menu with all the required parameters. The instrument packs the latest equipment technology in an attractive desktop housing with a protective rubber coating so field measurements can be made in difficult industrial environments without error.

The device can also be rail mounted to make it suitable for both fixed and mobile applications. The measuremant data can be stored on in 8MB flash memory and later downloaded to a PC and activated as a circular buffer. Furthermore a microSD card can be easily added to offer extra storage space for measurement speeds of up to 1000 measurements per second or long term monitoring in sleep mode. 10 isolated, independent measurent inputs allow for a huge variety of different sensor types, as well as existing sensors which can be connected to the device. Additionally a range of specially designed ALMEMO 710 digital sensors offer special features with outstanding accuracy. Firstly measurements of up to 8 digits are produced, and in addition the intelligent ALMEMO V7 connector allows up to 10 channels for measuring and function values for multi sensors and to connect external devices such as complex chemical analysers and energy analysers. The secret to this is that the sensors carry their own processor and AD converter.
