Miniature Formaldehyde Sensor Gains World Wide Acceptance in Many Applications

The Dart Sensors Ltd formaldehyde sensor, which has been under continuous improvement over several years, is at the heart of a number of recent product launches, with many more expected soon. Key features include; high sensitivity, low cross-sensitivities (particularly CO), and low sensor baseline offset, permitting continuous measurements down to 0.03 ppm HCHO.

Applications under development or in production include:

i. Handheld monitor
ii. Sub-miniature personal monitor
iii. Free-standing tabletop domestic device
iv. Air cleaner
v. Air conditioning equipment

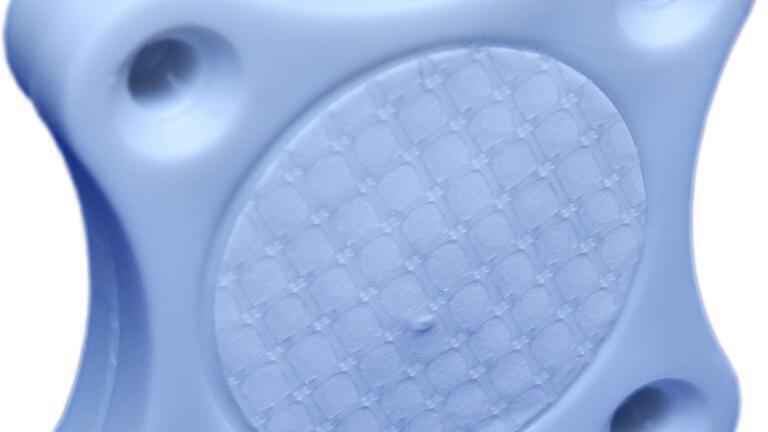

The sensor is of the diffusion type, and is available in premium (high exposure) or economy versions. It can be specified with a contact pcb (as in the picture), or with wire contacts for direct soldering to the customer’s pcb.

Further information

General description of the sensor here:

http://dart-sensors.com/pages/formaldehyde.php

Sensor data-sheet here:

http://dart-sensors.com/datasheets/11mm-hcho-sensor.pdf

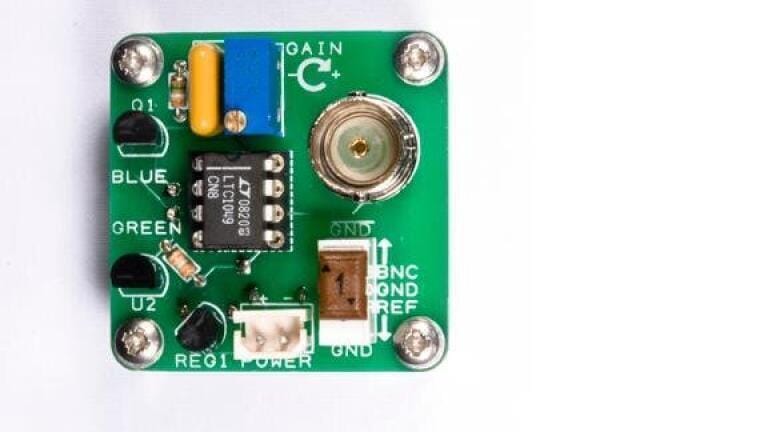

Dart Sensors Ltd supply a high-gain low-noise amplifier pcb giving an analogue output, which enables instant evaluation and speeds development time:

http://dart-sensors.com/pages/interface-board.php


Calibration: obtaining a valid formaldehyde calibration standard is neither simple nor cheap. Dart Sensors Ltd give guidance, and for customers in China, they will shortly set up a formaldehyde calibration gas stream at their Shenzhen office.

Contacts

CHINA

We no longer have a distributor for China. Contact our China representative:

Yue Lan, B-2403, Huaguoshan Building 1, Gongyuan Lu, Shekou, Shenzhen, China.
Tel/Fax: 0755-26690161
Mobile:13427973522
email: sarah@dart-sensors.com

REST OF THE WORLD

Use the Contact web page enquiry form, OR email: walter@dart-sensors.com
