New Generation of Multi-Gas Analysers

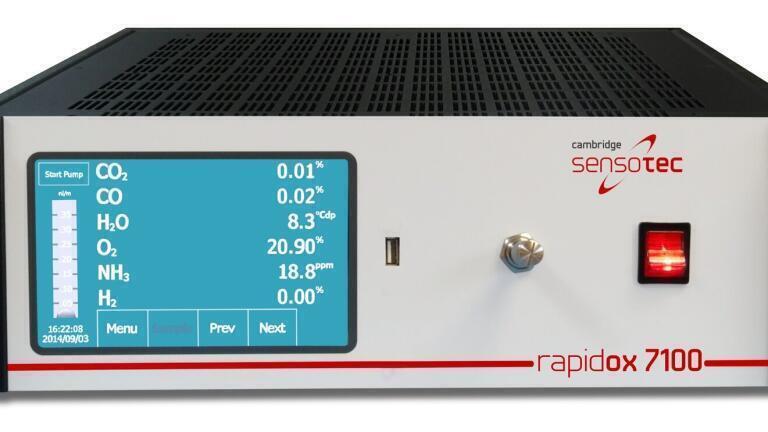

The Rapidox 7100 Multigas Analyser from Cambridge Sensotec (UK) is an all new high specification instrument designed and manufactured by Cambridge Sensotec for the analysis, control and monitoring of emission or process gas. This is the first 19” rack mountable gas analyser to be developed by the company, with features including touchscreen control and fully configurable gas sensors.

Developed in reaction to customer demand for a modular gas analysis instrument, the Rapidox 7100 Multigas Analyser is capable of measuring a wide range of gases. Applications for this instrument span across a varied selection of industries including; emissions monitoring, water treatment processes, medical research, environmental monitoring, R&D, semiconductor manufacturing, metal heat treatment and gas handling and production.

Up to six gases can be analysed by the Rapidox 7100 through the incorporation of a range of gas sensor technologies such as; infra-red, long-life electrochemical, thermal conductivity and ceramic tile. The sensors are specifically designed and calibrated to avoid any cross interference effects with background process gases where possible, whilst safety is ensured by the inclusion of flash back arrestors where required.

Standard features include; a 7" full colour touch screen interface with soft menu keys that allows for easy operation in either permanent monitoring or sampling modes, two fully programmable alarm circuits, programmable analogue outputs, RS232 / RS485 communications and complete data-logging software. All data is continuously logged for review and inspection and MS Excel compatible data can be downloaded via a USB memory stick.
