Optical Absorption Sensor

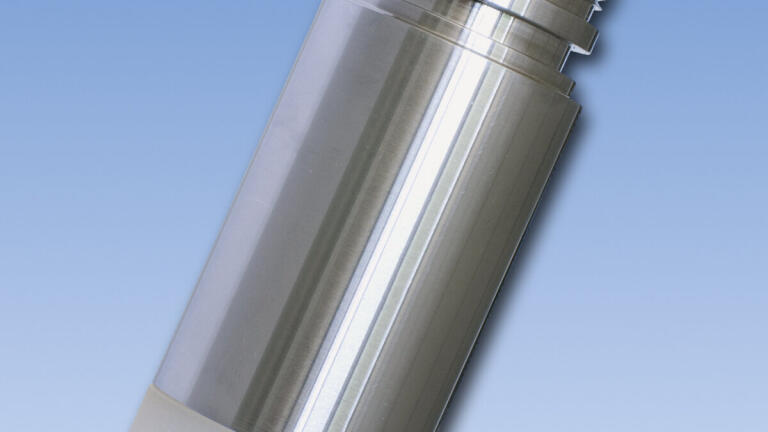

Endress+Hauser (USA) introduces the OUSAF11 sensor for measuring optical absorbance by a process fluid. Using visible and near-infrared wavelengths of light, the OUSAF11 is ideal for product loss detection, interface detection, and suspended solids and turbidity measurements.

The sensor emits light in both the visible and near-infrared regions, and absorption by the process fluid is determined using an optical sensor mounted in the sensor head. The sensor is available in an immersion model for use in open tanks and basins, or in an insertion model with Tri-Clamp or Varivent connections that meet 3A Sanitary Standards.

The body of the rugged OUSAF11 is constructed of 316L stainless steel. The measuring head contains the light source and optical sensor, and it’s constructed of FEP fluorocarbon film. The fouling-resistant sensor head contains no glass. The FEP fluorocarbon film is non-reactive, highly transparent, resistant to sunlight, and has a high temperature rating. Additionally, FEP is accepted by 3A for sanitary applications.

The OUSAF11 sensor can be operated continuously up to 194 ºF (90 ºC), and up to 266 ºF for up to two hours, allowing it to be used in hot CIP processes.

The OUSAF11 is easy to install and commission. The sensor can be installed in a pipe, with the appropriate fitting, or suspended in an open channel or basin. The integrated cable is easily wired to the transmitter. The menu-guided interface on the CVM40 allows the sensor to be set up quickly. Interface to the transmitter can also be accomplished using a keyboard and the USB port on the transmitter.

The CVM40 has a full-colour graphic display, built-in web server, and Profibus, Modbus, Ethernet TCP/IP and RS232C/RS485 communications. It has four optical channels for input from sensors, and two universal analogue inputs that accept voltage, current, RTDs, thermocouples and other standard inputs. Outputs include up to six relays, a 4-20 mA output and digital pulse outputs. The instrument can support a range of sensors in addition to the OUSAF11 with its six digital input channels.

The CVM40 can be field or panel mounted. The CVM40 can also be programmed with math functions and linearisation capability to output in a preferred unit of measure.

Endress+Hauser manufactures the sensor and transmitter at its Conducta production facility in Anaheim, California, an ISO accredited facility. When ordered, the sensor and transmitter are tested and calibrated together as a system, ensuring optimum performance.
